大马空军地面控制和指挥中心系统建好了

waja2000

用的原来是美国和法国联合公司的系统....
Thales和Raytheon大家都很熟悉了 ...

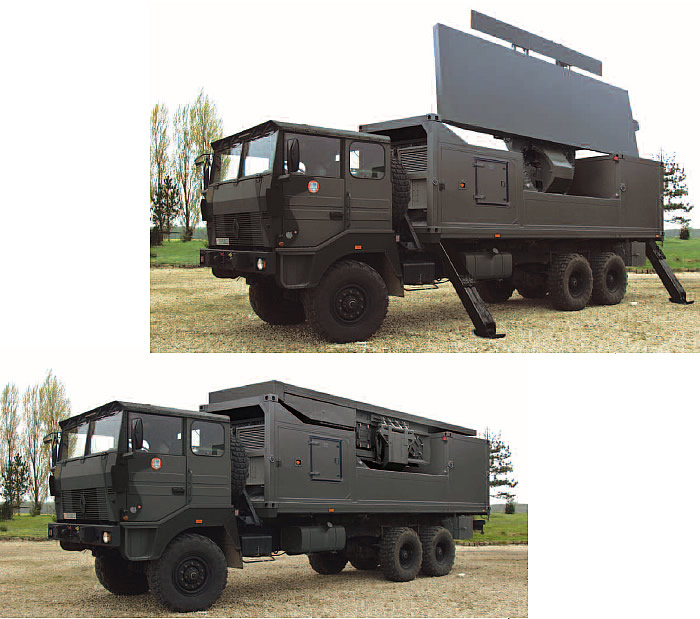

GM400, 3D AESA流动雷达 .. 还不错 ...




ThalesRaytheonSystems Completes Command and Control System for Malaysian Ministry of Defence
FEB 20, 13

FULLERTON, Calif., (Feb. 20, 2013) – ThalesRaytheonSystems today announced full system acceptance has been finalized with the Royal Malaysian Air Force for the Malaysian Air Defense Ground Environment Sector Operations Center III (MADGE) Program. ThalesRaytheonSystems provided the Malaysian Ministry of Defence an enhanced national command and control system.
“The C2 system we’ve executed in Malaysia represents technological integration at its best,” said Kim Kerry, CEO of U.S. Operations for ThalesRaytheonSystems. “We worked with our Malaysian customers to integrate their legacy system and have augmented it with proven technologies, such as the Sentry® command and control system and the Ground Master 400 (GM 400) radar. The result is a system that reliably and effectively meets their requirements.”
The MADGE system operates in real-time and features multi-radar tracking and a flexible human-machine interface. The GM 400 radar will provide additional long-range surveillance capabilities for the Royal Malaysian Air Force.

ThalesRaytheonSystems has more installed command and control systems operating around the world than any other organization. The Sentry command and control system is a proven, comprehensive, real-time system that powers national air sovereignty systems around the world, including the NORAD Battle Control System. The company is also a world leader in battlefield and weapon-locating radar systems. The company’s radar capabilities span short-, medium-, and long-range systems. The ground-based radars are capable of detecting both conventional and unconventional threats for homeland and tactical air defense, counter-battery, and weapons system coordination.

About ThalesRaytheonSystems
ThalesRaytheonSystems is an international company specializing in air defense systems, command and control systems, 3D air defense radars, and battlefield and weapon locating radars.  Since its founding in 2001, ThalesRaytheonSystems has become one of the defense industry’s most successful transatlantic joint ventures. The company employs 1,600 people and is equally owned by Raytheon and Thales.

http://www.thalesraytheon.com/ne ... stems-complete.html

detectivebinbin

謝分享～查了一下，大馬只有1套GM 400機動式遠程3D主動相位陣列（AESA）對空搜索雷達，偵測距離約390公里，偵測高度30500公尺，雷達轉速10RPM。大馬目前的主力戰機（Su-30MKM和F/A-18D）用的都是美製和法制航電系統，地面控制和指揮系統再選擇美法聯合的產品屬合情合理。另外還有2套EADS TRML 3D中程對空搜索雷達和傳聞中的VERA被動式偵測雷達不知道會不會也整合到這個指揮系統內？

detectivebinbin

原来默默无闻的Malaysian Air Defense Ground Environment Sector Operations Center III（MADGE SOC III）竟是一个如此重要的计划，建设完毕后将大大提升大马的联合防空系统，可被视为是大马版的『北美防空司令部』～

MADGE SOC III的『第1预警战斗控制系统』（BCS 1）位于关丹，『第2预警战斗控制系统』（BCS 2）则位于梳邦


MADGE SOC III具备侦测低空和高空的空中目标并传送给智慧和控制中心统一处理


Gound Master 400雷达的侦测覆盖范围


在我国领空出现的空中目标一旦被侦测后，将会在显示器标示出来
